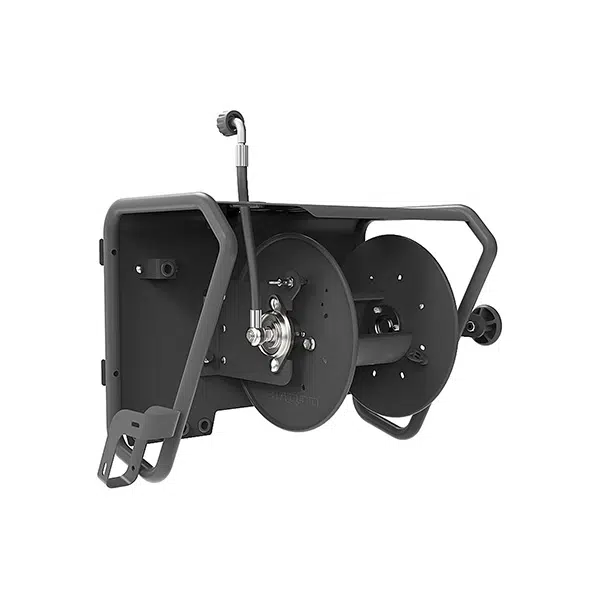

ACTIVE - Hose Reel and Wall Mount - Image 2

ACTIVE – Hose Reel and Wall Mount

$549.90

Heavy-duty construction for long-lasting durability
Smooth hose winding for tangle-free storage
Space-saving wall mount design keeps your setup organised
Ideal for pressure washer and detailing hose management
Sturdy mounting system for secure installation
Clean, professional look for any garage or detailing setup

Out of stock

SKU: JHHRWM Categories: Hose Reels, New Products, Active, Tools & Equipment Tags: car cleaning., car care, Hose Reel, Wall Mount, pressure washer, Pressure Washer Accessories, tools and equipment Brand: ACTIVE

Complete Your Ultimate Garage Wash Setup

Designed with input from customers, detailing professionals and industry experts, the ACTIVE Premium Hose Reel & Wall Mount Combo delivers a practical, organised and integrated solution for your garage wash system.

This all-in-one package combines a durable hose reel with a protective wall-mounted cage and dedicated storage for your pressure washer gun, foam cannon, lance and four nozzles. Designed to complement the ACTIVE pressure washer range and accessory bundles, it helps create a streamlined, clutter-free and efficient car washing experience.

The hose reel accommodates up to 100 ft (30 m) of 3/8” hose or 150 ft (45 m) of 5/16” hose, while the included mounting hardware and jumper hose provide the essential components for installation.

Complete Hose Management & Storage

The wall-mounted cage keeps your essential washing accessories organised and within easy reach. Its dedicated storage slots provide convenient space for your pressure washer gun, foam cannon, lance and four nozzles.

The 16-inch backing plate provides a secure mounting solution, while the included 5/16” jumper hose with M22-14mm connector enables connection to your pressure washer.

Technical Specs

Hose Reel

Inlet fitting: 3/8” QC female coupler
Outlet fitting: M22x1.5-14
Extension hose pre-installed
Reel rotation lock: release lock pin before turning the reel
Hand crank: customer need install hand crank and lock by pin
Hose clamp: customer needs to make adjustment to secure hose
Stainless steel (304) reel valve

Metal frame

Hose reel is pre-installed on frame
Customer installation is required for wall mount mode
Customer installation required for gun holder and fasten by screw
Customer adjustment is required for hose clip

Hardware

4pcs 6×30 mm screws to fasten mounting plate on the wall
4pcs M8x 20mm bolts to secure wall mount to mounting plate
2pcs M5x14 bolt to secure gun holder on frame

Accessories

Hand crank with lock pin
Mounting plate
Gun holder
Hardware kit

Measurements

Hose reel

Outer disc diameter: 300 mm
Inner barrel diameter: 120 mm
Reel width: 200 mm
Max. accommodate hose: 5/16” pressure hose, 100 ft

Metal cage

Width * Depth * Height (mm): 525 x 350 x 405
Mounting plate bolt holes layout: 16 inches x 5.6 inches x Φ8.0mm
Max loading capacity: 40kg

ACTIVE – Hose Reel and Wall Mount Hose Reels 14

FAQ

What additional equipment do I need to use the Active wall mount?

This kit has been built for optimized use with the Active 2.0 and 2.3 pressure washer and accessories. But it can be used to store any pressure washer with M22-14mm outlets. If you wish to use an M22-15mm pressure washer, you will need to source a separate jumper hose. Furthermore, any accessory terminating in a ¼” male plug (foam cannon, lance and nozzle can be used to store in the accessory mounts.

Can this kit be used with non Active branded pressure washers?

Although the kit is optimized for use with the Active 2.0 and 2.3, you can directly use this kit with any pressure washer in the market. The jumper hose provided terminates in an M22-14mm fitting. If you wish to use with an M22-15mm pressure washer, you will need to purchase a separate M22-15 jumper hose.

Can the Active wall mount and hose reel be used with the Active VE52/ VE56?

Yes, it can be used, but you need to purchase a separate M22-15mm to 3/8” adapter for the hose to be compatible with the M22-15mm outlet of the VE52/56.

What is the warranty policy and do I need to register my Active Premium Accessory Bundle?

This hose reel and wall mount combo comes with a 2-year warranty and does require warranty registration. Ensure you have your purchase proof, purchase store, order ID for warranty support.

What steps do I need to follow if my Active Hose Reel and Wall Mount Combo is not working as intended?

The first step to follow is to read your product manual for troubleshooting. We will soon be providing videos on product maintenance, upkeep and troubleshooting so this will be an additional resource as a troubleshooting guide. If product troubleshooting does fail, please ensure you email us at [email protected] for agent support.
